Information and Instructions for Aquatap Pro 2 Kit

Step by step instructions and overview

Congratulations on purchasing the Aquatap Pro 2 Kit! In this brief overview we will identify every part included in your new kit and walk you through the process of performing your very first hot tap with the Aquatap Pro 2 Kit.

Step by Step Instruction:

Step 1: Attach pilot bit to drill rod. It is very important to line up the flat part of the pilot bit with the set screw holes as pointed out in the video.

Step 2: Tighten down the set screw with the blue Allen Wrench.

Step 3: Choose desired adapter and screw it onto the blue housing assembly.

Step 4: Choose desired hole saw. Line up the holes on the hole saw with the holes on the drill rod as shown in the video.

Step 5: Tighten down the set screw. This will keep the hole saw in place.

Step 6: Attach the entire assembly to the valve.

Step 7: Attach the drill.

Step 8: Make sure that the valve is open and perform the hot tap.

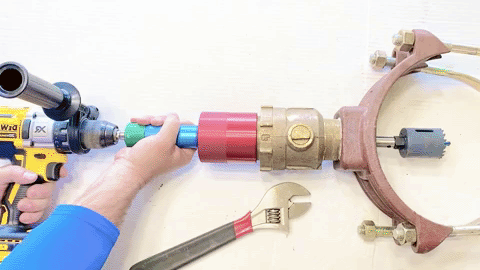

Step 9: After performing the hot tap pull the drill back as far as it can go and then shut off the valve.

After you have performed the hot tap you will want to disconnect the entire assembly from the valve and then remove the coupon.

To remove the coupon:
1) Loosen the set screws and remove the hole saw and the pilot bit.

2) Remove the pilot bit from the hole saw.

3) Insert the coupon ejector and tap on a hard surface.

Congratulations! You have successfully performed your first hot tap with the Aquatap Pro 2 Kit.
